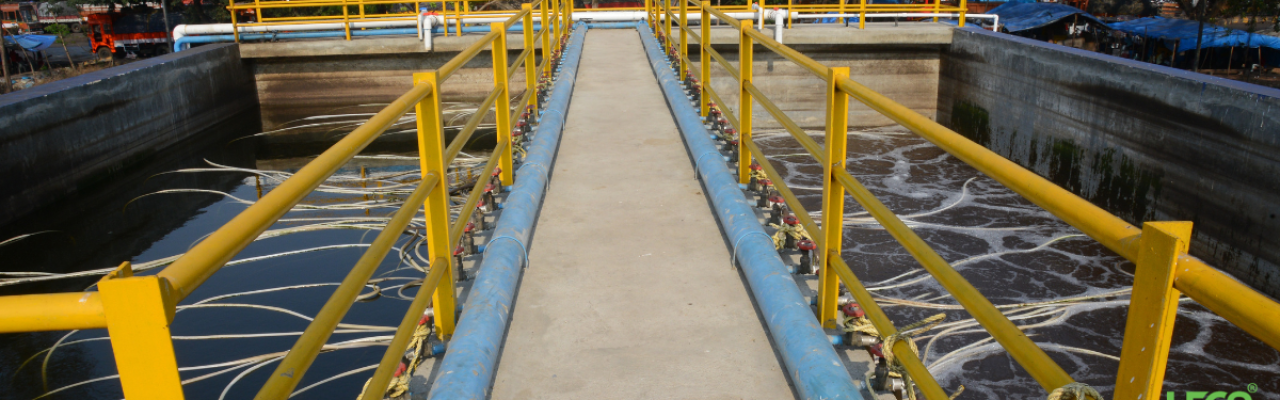

Sequential Batch Reactor (SBR)

Smart Sequential Batch Reactor (SBR) Sewage Treatment Plant

Land costs are rising, and wastewater discharge norms are becoming more stringent for residential, commercial, and industrial projects. If you are planning a Sewage Treatment Plant (STP) that ensures reliable performance and consistently high-quality treated water, a Sequential Batch Reactor (SBR) system is one of the most efficient and compliant solutions available. Designed for advanced biological treatment, SBR technology effectively reduces BOD, COD, TSS, and nutrients, helping projects meet pollution control board standards with confidence.

At HECS (Hubert Enviro Care Systems), we go beyond supplying equipment — we design engineered wastewater treatment solutions built for long-term performance. Our SBR technology is specifically developed to manage fluctuating sewage loads while efficiently removing nitrogen and phosphorus without requiring multiple additional process tanks. Whether it’s a residential township, hospitality project, commercial complex, or industrial facility, our SBR-based STP systems are automated, durable, and simple to operate, ensuring stable treatment results with minimal operator dependency.

How does the HECS SBR Process Work?

One of the biggest advantages of the Sequential Batch Reactor is its simplicity. The entire cycle happens in a single reactor, controlled by a smart PLC (Programmable Logic Controller). Here is what happens inside the tank:

1. Fill: Raw sewage flows into the tank. We can mix it without aeration to create "anoxic" conditions, which helps remove nitrogen later.

2. React: Air is pumped in (aeration). This is where the "eating" happens. Microorganisms break down the organic matter and pollutants in the water.

3. Settle: The aeration stops. The water goes still, and the biological solids (sludge) sink to the bottom. This happens in the same tank, so you don’t need a separate clarifier.

4. Decant: The clear, treated water on top is skimmed off. This is your final, treated effluent ready for discharge or reuse.

5. Idle: The tank rests briefly before the next batch begins.

Why Choose an HECS SBR Over Other Technologies?

When you evaluate treatment options, the Sequential Batch Reactor (SBR) stands out for specific reasons. It’s not just about treating water; it’s about doing it efficiently.

• Saves Space: Because the settling happens in the same tank as the reaction, you eliminate the need for secondary clarifiers. This can reduce your plant’s footprint by up to 30-40%.

• Handles Shock Loads: Does your facility have busy weekends and quiet weekdays? SBRs are excellent at handling flow variations. The system adjusts the cycle time based on how much water comes in.

• Superior Nutrient Removal: If your environmental limits require low levels of Nitrogen and Phosphorus, SBRs are naturally suited to achieve this through timed aeration control.

• High-Quality Effluent: The settling phase is calm and undisturbed, indicating excellent sludge separation. The water coming out is clear and meets stringent norms.

• No Sludge Recirculation Pumps: Unlike the Activated Sludge Process (ASP), SBRs don’t need complex sludge recirculation piping, which means less maintenance and lower energy use.

Industries and Applications Best Suited for  SBR Technology

The Sequential Batch Reactor (SBR) is versatile, but it shines in specific environments. We recommend this technology for:

• Townships & Gated Communities

• Hotels & Resorts

• Hospitals & Campuses

• Small to Medium Industries

The HECS Advantage: Engineering That Works

An SBR is only as good as its control system. If the timing is off, the water quality drops. At HECS, we bring 28 years of operational experience to the table.

• Customised SBR Design: We calculate the exact decanter speed and aeration volume your site needs. We don’t use cookie-cutter designs.

• Automation Focus: Our systems run on automated panels that take the guesswork out of operation. Operators get clear alerts, not confusing error codes.

• Decanter Expertise: The decanter is the heart of the SBR. We use high-quality moving weir decanters that prevent floating sludge from escaping with the clean water.

• Retrofitting: We can often convert your old, failing STP into a modern SBR system without building new civil structures.

Ready to Optimise Your Wastewater Treatment?

If you are tired of high maintenance costs, leaking sludge, or a plant that takes up too much room, it’s time to look at the Sequential Batch Reactor (SBR).

Let HECS analyze your current water flow and design a solution that fits your budget and your land.
