2 MLD SBR Sewage Treatment Plant – Manali New Town, Chennai

  1. Home

  2. 2 MLD SBR Sewage Treatment Plant – Manali New Town, Chennai

HECS – Hubert Enviro Care Systems
2 MLD SBR Sewage Treatment Plant – Manali New Town, Chennai
2 MLD SBR Sewage Treatment Plant – Manali New Town, Chennai
Place:

Manali New Town, Chennai

HECS executed the 2 MLD SBR sewage treatment plant at Manali New Town, Chennai, with CMWSSB. SBR treatment followed by pressure sand filters, ultrafiltration, activated carbon and UV disinfection gives wastewater a second life for landscaping and utility reuse.

Intelligent Wastewater Treatment for Sustainable Water Reuse

Project summary: Hubert Enviro Care Systems Limited (HECS) executed the 2 MLD Sequencing Batch Reactor (SBR) Sewage Treatment Plant at Manali New Town, Chennai, in partnership with the Chennai Metropolitan Water Supply and Sewerage Board (CMWSSB). The plant treats 2 million litres of sewage a day through SBR, sand filtration, ultrafiltration, carbon filtration and UV disinfection, producing water for landscaping and other non-potable reuse.

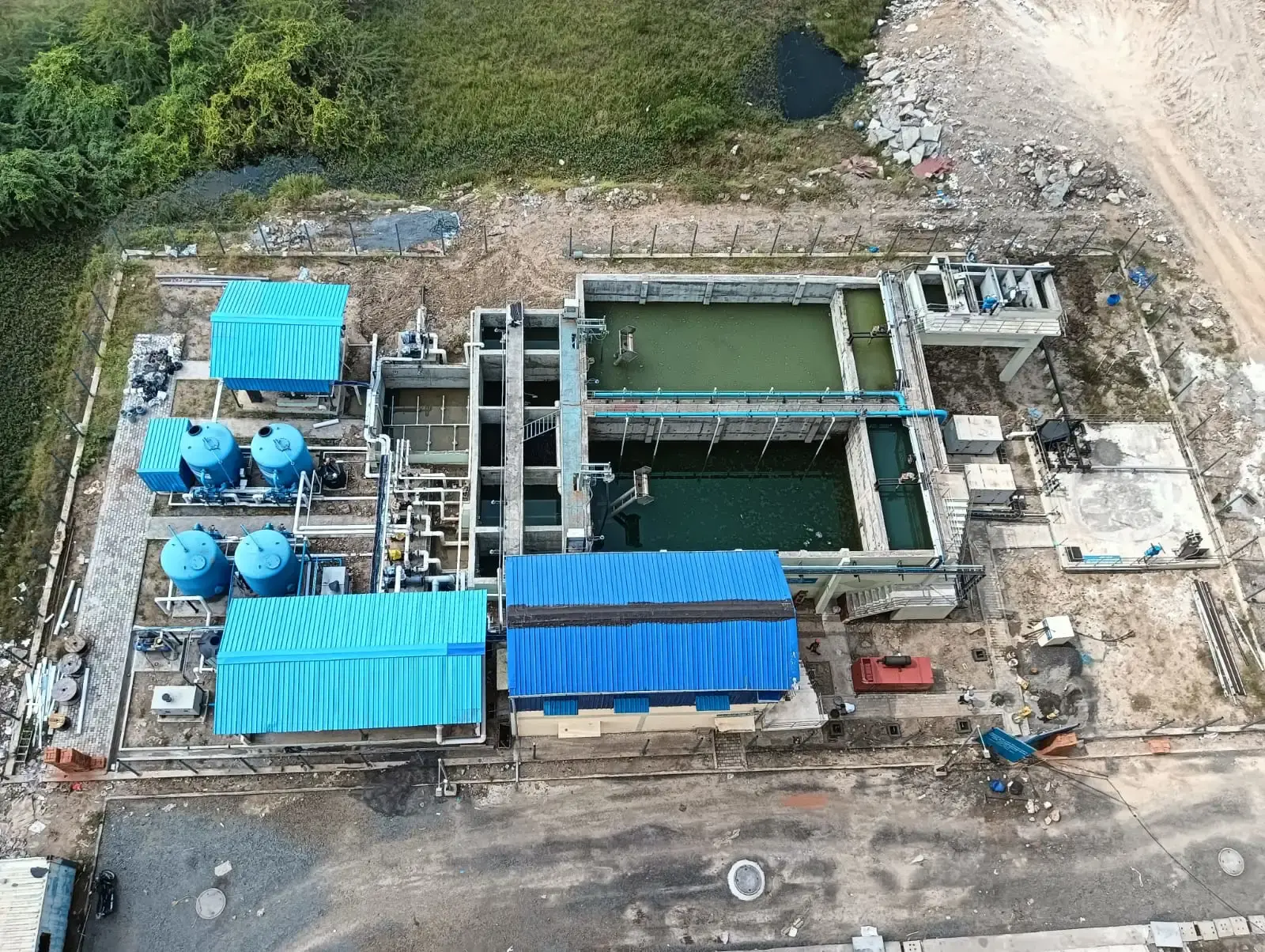

2 MLD SBR sewage treatment plant at Manali New Town, Chennai by HECS

Watch: Giving Water a Second Life

Project Highlights

Project2 MLD SBR Sewage Treatment Plant
LocationManali New Town, Chennai, Tamil Nadu
PartnerChennai Metropolitan Water Supply and Sewerage Board (CMWSSB)
Capacity2 MLD (2 million litres per day)
Core technologySequencing Batch Reactor (SBR)
Tertiary treatmentPressure sand filters, ultrafiltration (UF) membranes, activated carbon filters, UV disinfection
ControlsCentralised MCC and control system with real-time monitoring
Quality assuranceOn-site water quality laboratory
ScopeMunicipal sewage treatment and treated-water reuse
Reuse applicationsLandscaping, utility applications and other non-potable uses

How the Plant Works: From Sewage to Reusable Water

Wastewater passes through an engineered treatment train, with every stage tracked in real time.

StageWhat happensWhy it matters
1. Collection and equalisationIncoming sewage is collected and equalisedEvens out variations in flow and load before treatment
2. Screening and grit removalDebris, grit and unwanted solids are separated outProtects pumps, aeration equipment and downstream processes
3. Sequencing Batch Reactor (SBR)Microorganisms break down organic pollutants, supported by advanced aeration and intelligent process controlThe biological core of the plant, where most organic contaminants are removed
4. Settling and sludge managementClear water is separated from biological solids, and the activated sludge is managed and recycledKeeps the biology performing well while minimising waste
5. Pressure sand filtrationFine suspended particles are removedPrepares the water for membrane filtration
6. Ultrafiltration (UF)Membranes act as a highly selective barrier, with automatic cleaning and backwashRemoves microscopic impurities and pathogens
7. Activated carbon filtrationThe water is polished furtherImproves clarity and overall water quality
8. UV disinfectionUltraviolet light disinfects the waterA chemical-free final safeguard before reuse

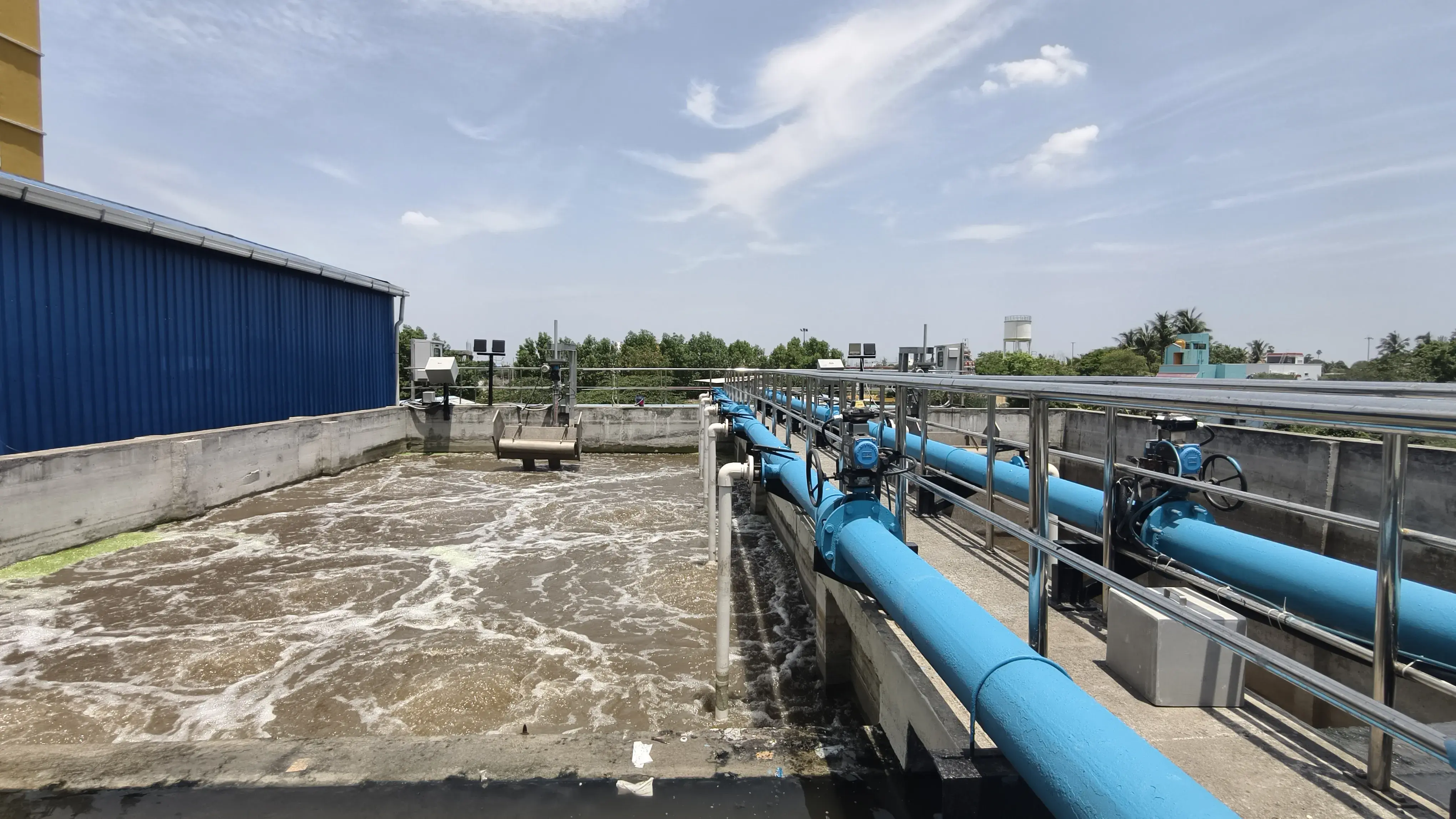

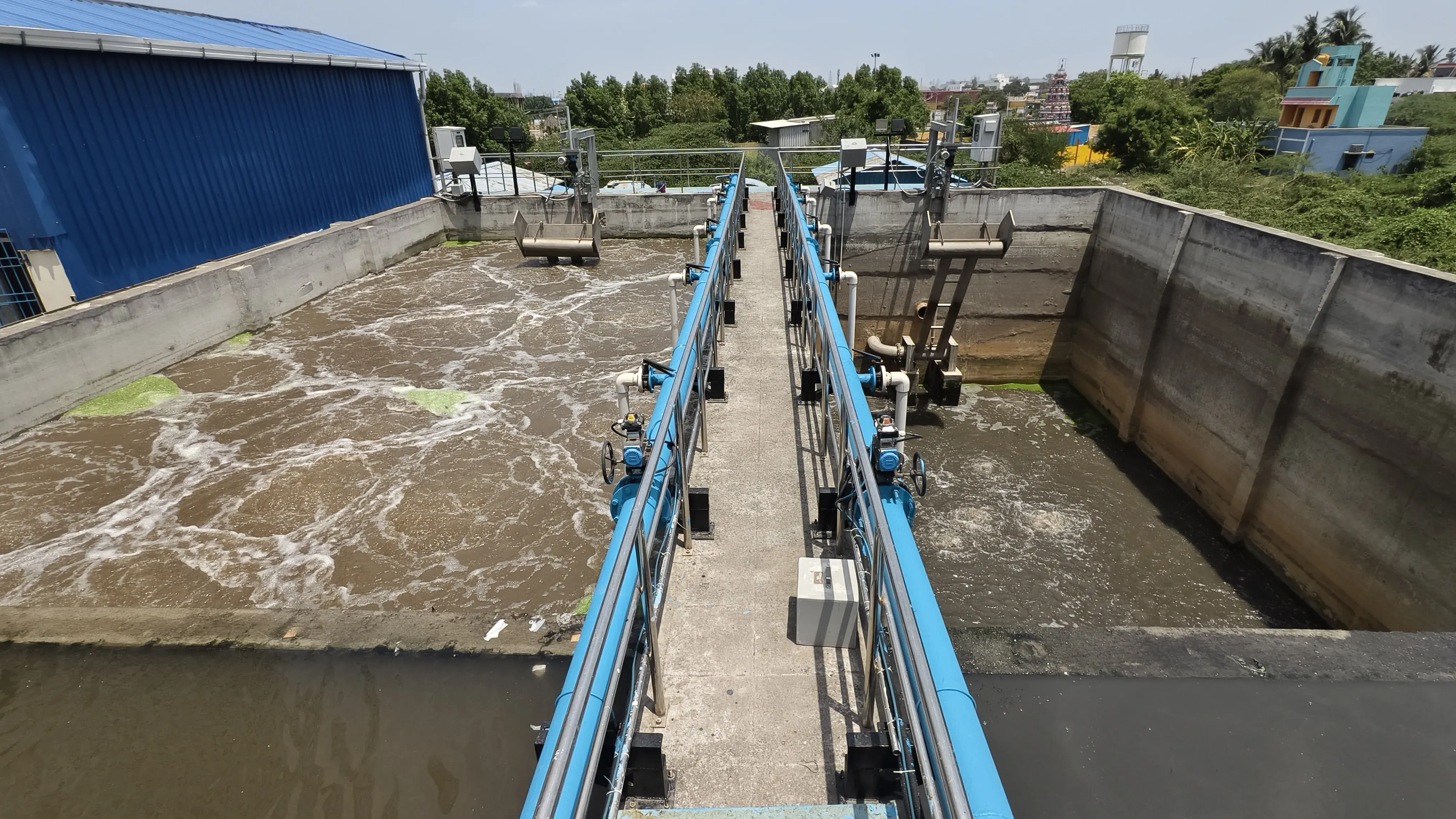

SBR reactor and treatment units at the 2 MLD Manali New Town STP, Chennai

Why Sequencing Batch Reactor (SBR) Technology?

An SBR is a fill-and-draw form of the activated sludge process. Instead of separate tanks for each step, equalisation, aeration, biological treatment, settling and decanting take place in sequential cycles within the reactor. The automated process removes organic pollutants, solids and nutrients, and stays efficient when sewage flow fluctuates. Learn more about HECS SBR sewage treatment plants.

Automation and Real-Time Monitoring

The entire process is monitored through a centralised MCC (Motor Control Centre) and control system. Pumps, flows, filtration and disinfection are tracked in real time, from the first stage to the last.

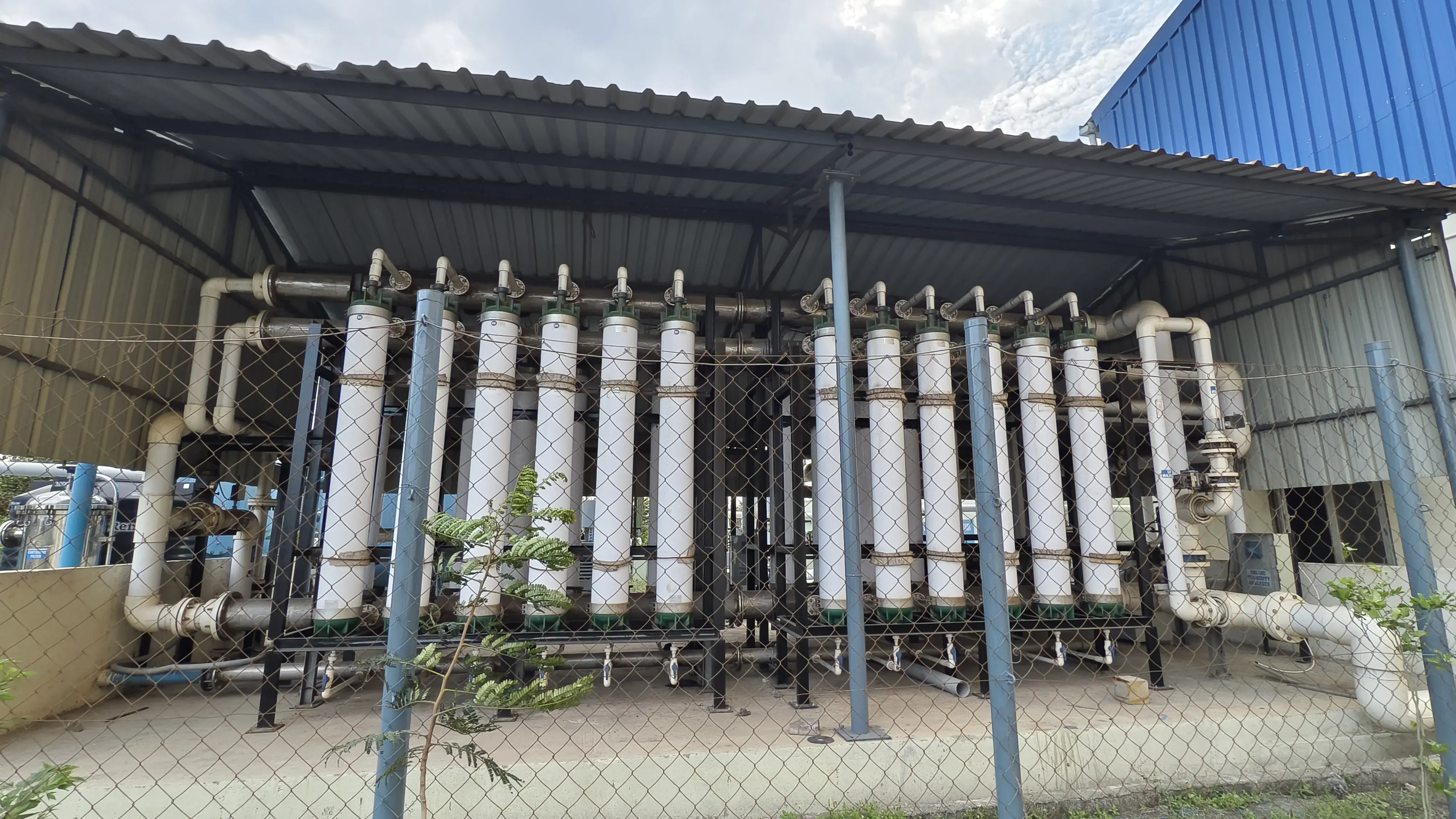

Control and filtration systems at the 2 MLD SBR sewage treatment plant, Manali

Every Drop Backed by Science: On-Site Water Quality Laboratory

Critical treated-water parameters are continuously monitored and verified through an on-site water quality laboratory, so that treated water consistently meets the required quality standards. HECS also offers independent water and wastewater testing through its laboratory services.

Key Features

  • Advanced Sequencing Batch Reactor (SBR) technology
  • Automated treatment cycles for consistent operational performance
  • High removal efficiency of BOD, COD, TSS and nutrients
  • Multi-stage tertiary treatment: pressure sand filters, ultrafiltration and activated carbon filters
  • Chemical-free UV disinfection
  • Energy-efficient operation with a reduced operational footprint
  • Treated water suitable for landscaping, utility and other non-potable applications
  • Reliable process control to meet regulatory discharge standards

Impact: Giving Water a Second Life

What was once wastewater is now a resource. Every litre recovered for landscaping and utility use reduces demand on Chennai's freshwater sources. It strengthens water security for the community.

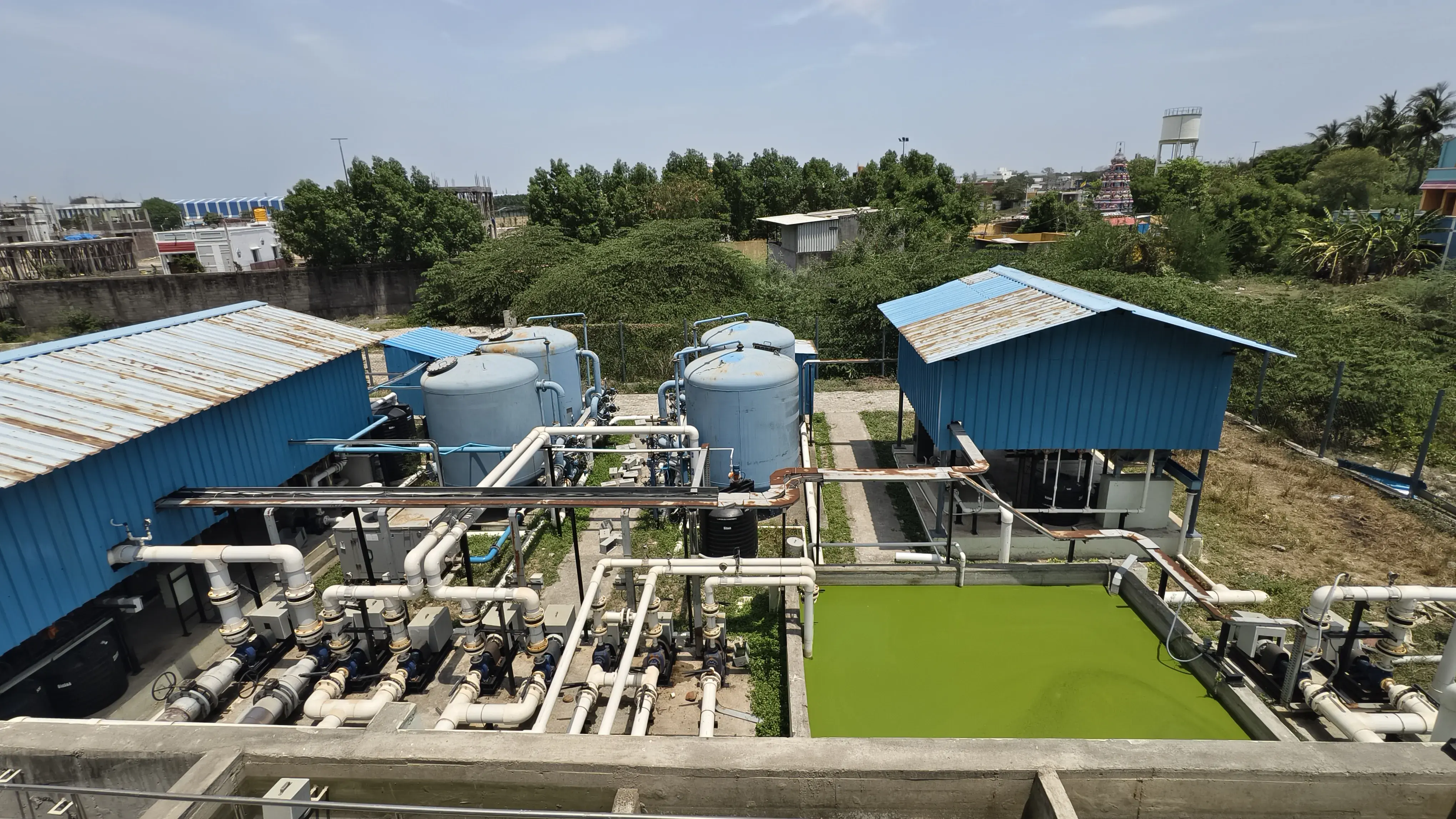

Treated water reuse at HECS 2 MLD SBR STP, Manali New Town

HECS is proud to partner with the Chennai Metropolitan Water Supply and Sewerage Board (CMWSSB) in strengthening Chennai's wastewater infrastructure and building a cleaner, greener and more water-secure future.
